CAP FILM 0.1UF 5% 2KVDC SCREW

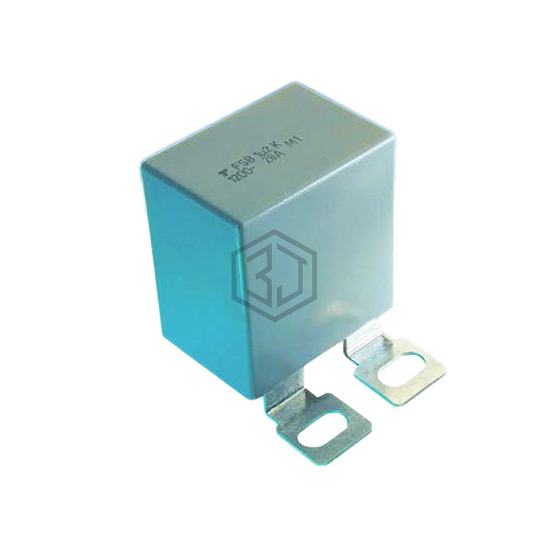

FSB16N0104J is a Film Capacitors manufactured by KYOCERA AVX. CAP FILM 0.1UF 5% 2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 2000V (2kV), package / case Rectangular Box.
In Stock: 3,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 14.3 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.224" L x 0.512" W (31.10mm x 13.00mm) |
| Height - Seated (Max) | 1.000" (25.40mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C4BSWBX3100ZMFJ | KEMET | CAP FILM 0.1UF 5% 2KVDC SCREW | 100% | View |
| PMB2203100KSLB | Nichicon | FILM CAP BOXED LUGS | 100% | View |
| BFC238663104 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 2KVDC SCREW | 100% | View |
| BFC238661104 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 2KVDC SCREW | 100% | View |
| B32656S2104K564 | EPCOS - TDK Electronics | CAP FILM 0.1UF 10% 2KVDC SCREW | 98% | View |
| B32656S2104J564 | EPCOS - TDK Electronics | CAP FILM 0.1UF 5% 2KVDC SCREW | 98% | View |
Submit your RFQ for FSB16N0104J and get a quote within 24 hours.
