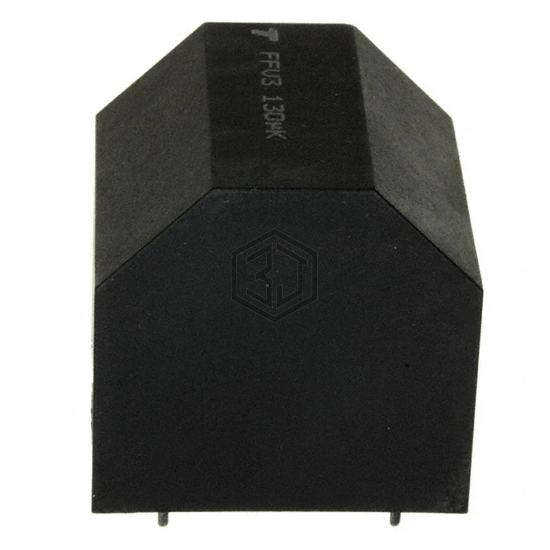

CAP FILM 6UF 10% 1.1KVDC RADIAL
FFV36L0605K-- is a Film Capacitors manufactured by KYOCERA AVX. CAP FILM 6UF 10% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial - 4 Leads.
In Stock: 4,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 180V |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.575" L x 1.417" W (40.00mm x 36.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.984" (25.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EFDKS1BK605D134BH | Eaton - Electronics Division | CAP FILM 6UF 10% 1100VDC RAD | 100% | View |
| EFDKA1BJ605D132LH | Eaton - Electronics Division | CAP EFDKA 1100VDC 6UF J 2LEADS | 100% | View |
| EFDKA1BJ605D134BH | Eaton - Electronics Division | CAP EFDKA 1100VDC 6UF J 4LEADS | 100% | View |
| MKP1848C56010JP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6UF 5% 1KVDC RADIAL | 98% | View |
| MKP1847H56048JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6UF 5% 1KVDC RADIAL | 85% | View |
| MKP1847H56048KY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6UF 10% 1KVDC RADIAL | 85% | View |
