CAP FILM 5.6UF 10% 525VDC RADIAL

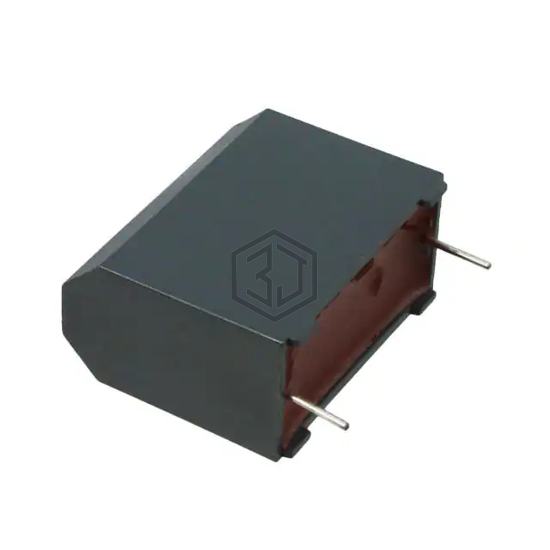

FFB26J0565K-- is a Film Capacitors manufactured by KYOCERA AVX. CAP FILM 5.6UF 10% 525VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 525V, package / case Radial.
In Stock: 7,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5.6 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 105V |
| Voltage Rating - DC | 525V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.224" L x 0.575" W (31.10mm x 14.60mm) |
| Height - Seated (Max) | 1.012" (25.70mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385556063JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.6UF 5% 630VDC RADIAL | 87% | View |
| BFC246853565 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.6UF 10% 250VDC RADIAL | 84% | View |
| MKX2AW45607F00KSSD | WIMA | CAP FILM 5.6UF 10% 630VDC RAD | 83% | View |
| BFC2373EL565MI | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.6UF 10% 250VDC RADIAL | 83% | View |
| MKP385556085JPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.6UF 5% 850VDC RADIAL | 79% | View |
| MKP385556100JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5.6UF 5% 1KVDC RADIAL | 74% | View |
Submit your RFQ for FFB26J0565K-- and get a quote within 24 hours.
