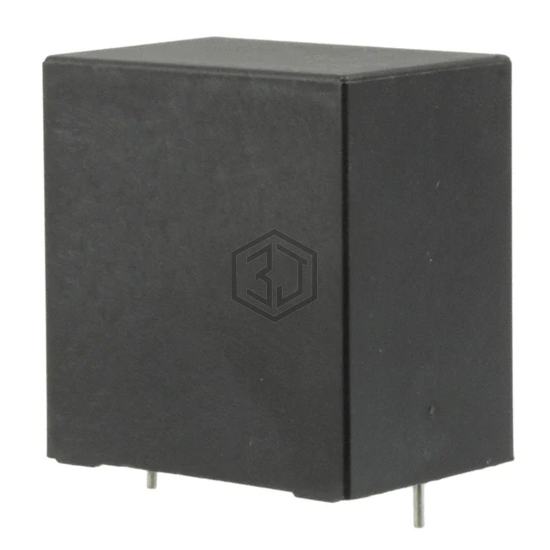

CAP FILM 15UF 10% 1KVDC RADIAL
FB37M6K0156KC is a Film Capacitors manufactured by KYOCERA AVX. CAP FILM 15UF 10% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 9,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8 mOhms |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.673" L x 1.181" W (42.50mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Low ESR |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MPX156K305R | Cornell Dubilier / Illinois Capacitor | CAP FILM 15UF 10% 305VAC RAD | 100% | View |
| B32776H0156K000 | EPCOS - TDK Electronics | CAP FILM 15UF 10% 920VDC RADIAL | 99% | View |
| C4AUOBW5150M3JJ | KEMET | FILM, RADIAL, METALLIZED POLYPRO | 98% | View |
| DCP4N051507GD2KSSD | WIMA | CAP FILM 15UF 10% 900VDC RADIAL | 98% | View |
| MKP385E61563KYP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 15UF 10% 630VDC RAD | 92% | View |
| F339MX261531MPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 15UF 20% 450VDC RADIAL | 86% | View |
