FIXED IND 8NH 4A 2.6 MOHM SMD

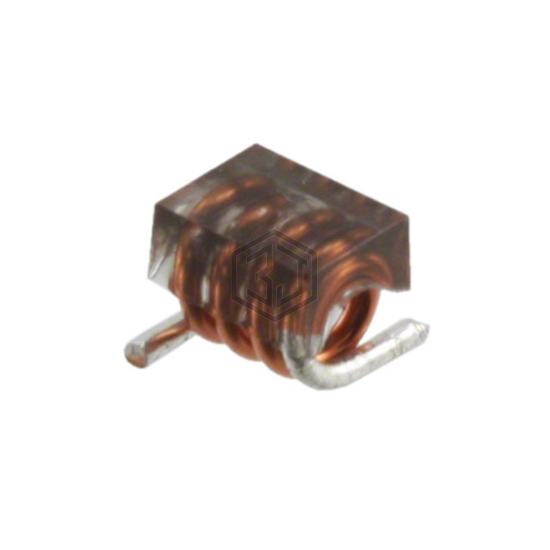

AL12A08N0GTR is a Fixed Inductors manufactured by KYOCERA AVX. FIXED IND 8NH 4A 2.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4 A.
In Stock: 457
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 8 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.6mOhm Max |
| Q @ Freq | 140 @ 150MHz |
| Frequency - Self Resonant | 5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Height - Seated (Max) | 0.125" (3.18mm) |
Submit your RFQ for AL12A08N0GTR and get a quote within 24 hours.
