CAP CER 5600PF 1.5KV NP0 2225

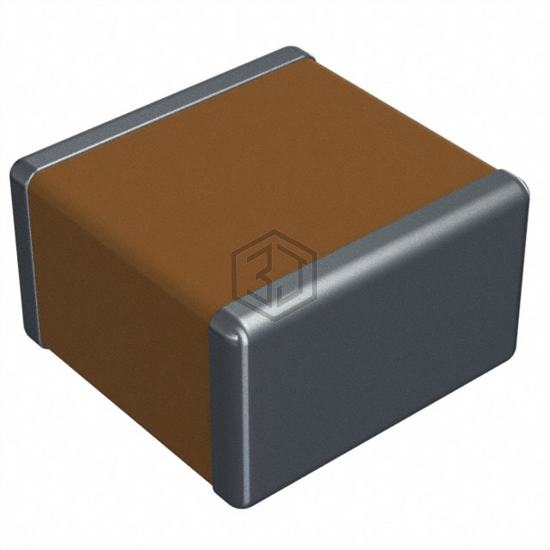

2225SA562JAZ2A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 5600PF 1.5KV NP0 2225. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 1500V (1.5kV), package / case 2225 (5763 Metric).
In Stock: 2,647
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 pF |
| Tolerance | ±5% |
| Voltage - Rated | 1500V (1.5kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Soft Termination, High Voltage |
| Ratings | - |
| Applications | Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) |
| Size / Dimension | 0.224" L x 0.248" W (5.70mm x 6.30mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.134" (3.40mm) |
| Lead Spacing | - |
| Lead Style | - |
