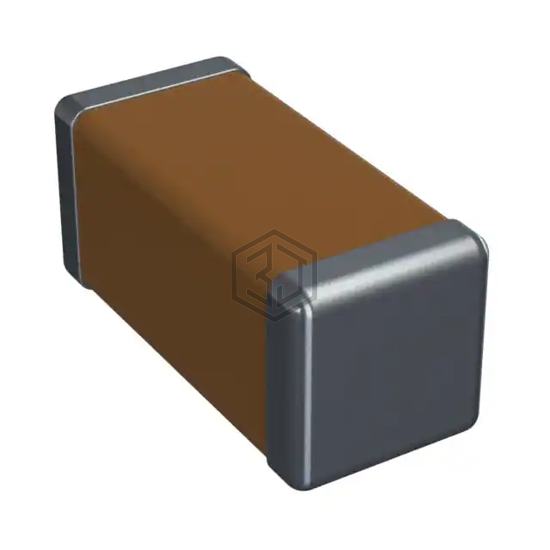

CAP CER 560PF 2.5KV X7R 1808
1808WC561KAT9A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 560PF 2.5KV X7R 1808. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 2500V (2.5kV), package / case 1808 (4520 Metric).
In Stock: 7,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 pF |
| Tolerance | ±10% |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1808 (4520 Metric) |
| Size / Dimension | 0.181" L x 0.079" W (4.60mm x 2.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.087" (2.20mm) |
| Lead Spacing | - |
| Lead Style | - |
