CAP CER 560PF 2.5KV X7R 1808

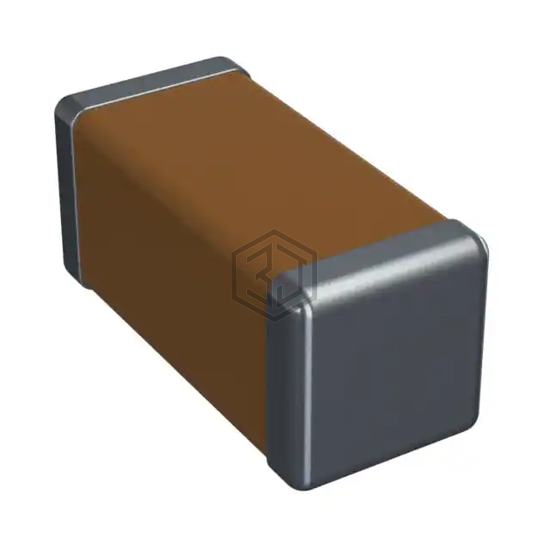

1808WC561KAT1A is a Ceramic Capacitors manufactured by KYOCERA AVX. CAP CER 560PF 2.5KV X7R 1808. Key specifications: mounting type Surface Mount, MLCC, operating temperature -55°C ~ 125°C, voltage - rated 2500V (2.5kV), package / case 1808 (4520 Metric).
In Stock: 6,417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 pF |
| Tolerance | ±10% |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1808 (4520 Metric) |
| Size / Dimension | 0.181" L x 0.079" W (4.60mm x 2.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.087" (2.20mm) |
| Lead Spacing | - |
| Lead Style | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2225J1K20561KXT | Knowles Syfer | CAP CER 560PF 1.2KV X7R 2225 | 56% | View |
| 1206J6300561JXR | Knowles Syfer | CAP CER 560PF 630V X7R 1206 | 56% | View |
| CDR31BX561BKZPAT | Vishay Vitramon | CAP CER 560PF 100V BX 0805 | 56% | View |
| 1206J0100561KXT | Knowles Syfer | CAP CER 560PF 10V X7R 1206 | 56% | View |
| GA0402Y561KXAAC31G | Vishay Vitramon | CAP CER 560PF 50V X7R 0402 | 56% | View |
| GA1206A561KBABR31G | Vishay Vitramon | CAP CER 560PF 50V C0G/NP0 1206 | 56% | View |
Submit your RFQ for 1808WC561KAT1A and get a quote within 24 hours.
