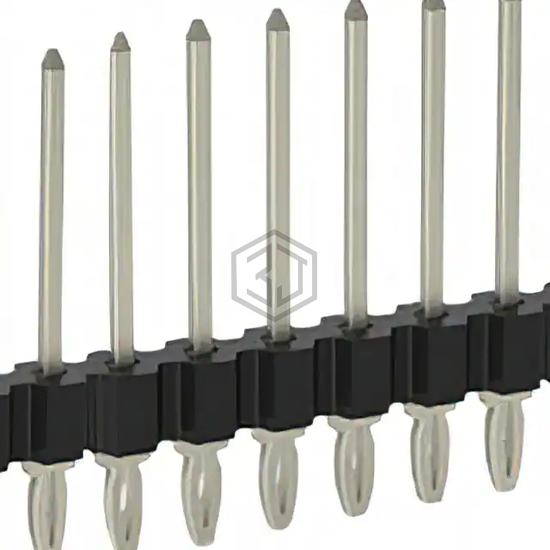

PIN HEADER, PRESS FIT, SINGLE RO
23-1045D00A3TT is a Rectangular Connectors - Headers, Male Pins manufactured by Autosplice, Inc.. PIN HEADER, PRESS FIT, SINGLE RO. Key specifications: mounting type Through Hole, contact material Copper Alloy, termination Press-Fit, number of positions 25000, Cuttable.
In Stock: 46,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 25000, Cuttable |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Fastening Type | - |
| Contact Length - Mating | 0.411" (10.44mm) |
| Contact Length - Post | 0.149" (3.78mm) |
| Overall Contact Length | 0.680" (17.27mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 23-1045D00A3TT and get a quote within 24 hours.
