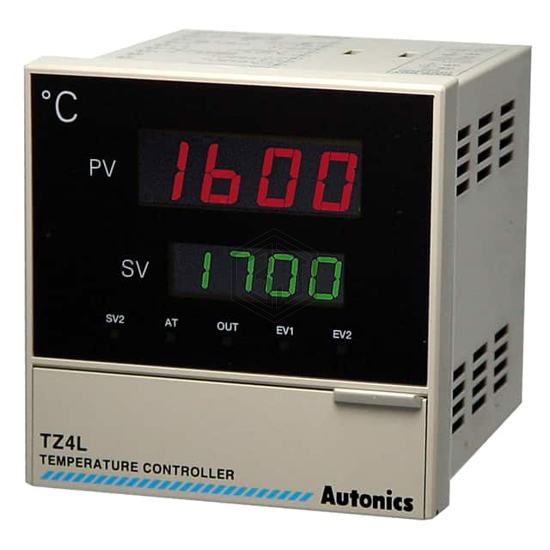

PID CONTROL SSR 100-240VAC
TZ4L-A4S is a Controllers - Process, Temperature manufactured by Autonics. PID CONTROL SSR 100-240VAC. Key specifications: mounting type Panel Mount, voltage - supply 100 ~ 240VAC, termination style Screw Terminal, output type PV Output, Solid State.
In Stock: 8,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Temperature Controller (RTD, Type E, J, K, N, R, S, T, W) |
| Input Range | -200°C ~ 1700°C, -328°F ~3092°F |
| Output Type | PV Output, Solid State |
| Control Method | On/Off, Proportional (PID) |
| Communications | - |
| Number of Characters Per Row | 4, 4 |
| Display Type | LED - Green, Red Characters |
| Display Characters - Height | 0.559" (14.20mm), 0.394" (10.00mm) |
| Voltage - Supply | 100 ~ 240VAC |
| Panel Cutout Dimensions | Square - 92.00mm x 92.00mm |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | - |
| Features | Option Cards Available |
Submit your RFQ for TZ4L-A4S and get a quote within 24 hours.
