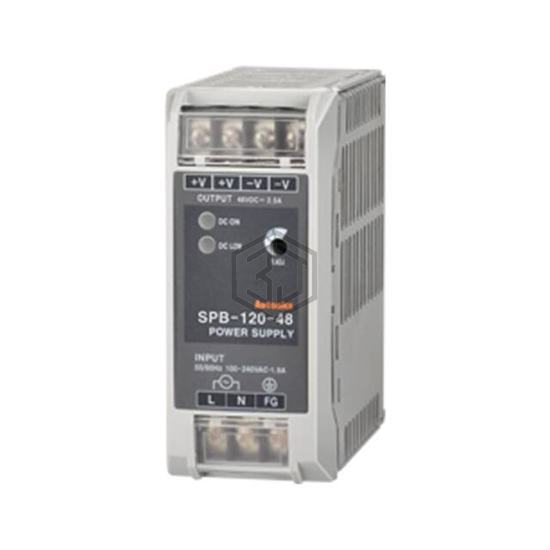

Power Supply AC/DC 48VDC 120W
SPB-120-48 is a Industrial, DIN Rail Power Supplies manufactured by Autonics. Power Supply AC/DC 48VDC 120W. Key specifications: operating temperature -10°C ~ 50°C (With Derating), current - output (max) 5A, size / dimension 3.15" L x 1.97" W x 5.20" H (80.0mm x 50.0mm x 132.0mm), number of outputs 1.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC, 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 240W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 75% |
| Operating Temperature | -10°C ~ 50°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 3.15" L x 1.97" W x 5.20" H (80.0mm x 50.0mm x 132.0mm) |
| Approval Agency | CE, cULus, EAC |
| Standard Number | 60950-1 |
Submit your RFQ for SPB-120-48 and get a quote within 24 hours.
