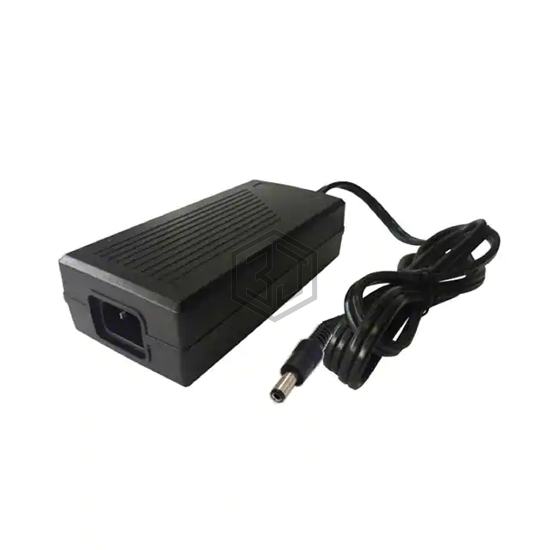

AC/DC DESKTOP ADAPTER 36V 65W
EDP65-36-MB2-100 is a AC DC Desktop, Wall Adapters manufactured by Astrodyne TDI. AC/DC DESKTOP ADAPTER 36V 65W. Key specifications: operating temperature -25°C ~ 70°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.8A, size / dimension 5.34" L x 2.59" W x 1.46" H (135.6mm x 65.8mm x 37.1mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 1.8A |
| Power (Watts) | 65 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level VI |
| Operating Temperature | -25°C ~ 70°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 48" (1.22m) |
| Input Connector | IEC 320-C18 |
| Features | - |
| Size / Dimension | 5.34" L x 2.59" W x 1.46" H (135.6mm x 65.8mm x 37.1mm) |
| Approval Agency | CB, CE, cURus, FCC, UL |
| Standard Number | 60601-1 |
Submit your RFQ for EDP65-36-MB2-100 and get a quote within 24 hours.
