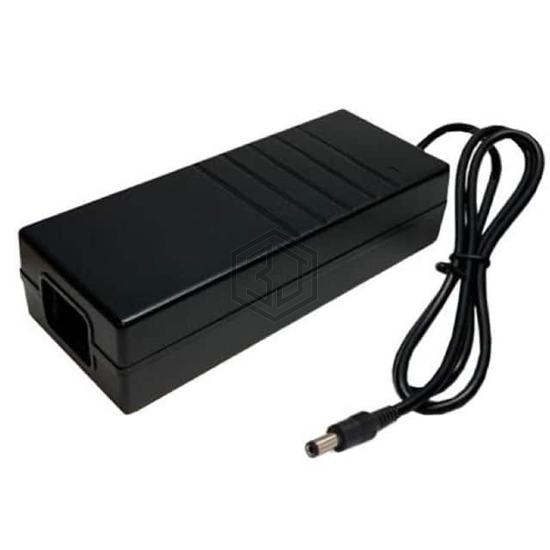

AC/DC DESKTOP ADAPTER 36V 125W
EDP125-360-MB2-110 is a AC DC Desktop, Wall Adapters manufactured by Astrodyne TDI. AC/DC DESKTOP ADAPTER 36V 125W. Key specifications: operating temperature -40°C ~ 80°C, voltage - input 80 ~ 264 VAC, current - output (max) 3.5A, size / dimension 6.00" L x 2.48" W x 1.50" H (152.4mm x 63.0mm x 38.0mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 3.5A |
| Power (Watts) | 125 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI |
| Operating Temperature | -40°C ~ 80°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 48" (1.22m) |
| Input Connector | IEC 320-C18 |
| Features | - |
| Size / Dimension | 6.00" L x 2.48" W x 1.50" H (152.4mm x 63.0mm x 38.0mm) |
| Approval Agency | CB, CE, cTUVus, FCC, TUV |
| Standard Number | 60601-1; 60950-1; 62368-1 |
Submit your RFQ for EDP125-360-MB2-110 and get a quote within 24 hours.
