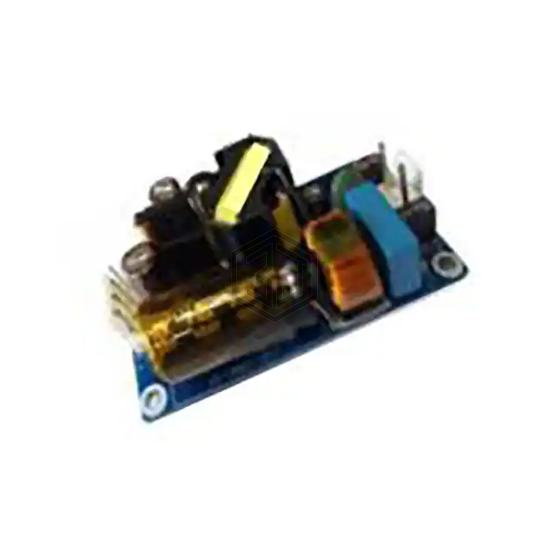

AC/DC CONVERTER 3.3V 30W
ASM30-033-BNH-0F0 is a AC DC Converters manufactured by Astrodyne TDI. AC/DC CONVERTER 3.3V 30W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 80°C, voltage - input 80 ~ 264 VAC, size / dimension 3.00" L x 1.60" W x 0.85" H (76.2mm x 40.6mm x 21.7mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 30W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 87% |
| Operating Temperature | -40°C ~ 80°C |
| Features | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 1.60" W x 0.85" H (76.2mm x 40.6mm x 21.7mm) |
| Approval Agency | - |
| Standard Number | 60601-1; 60950-1; 62368-1 |
Submit your RFQ for ASM30-033-BNH-0F0 and get a quote within 24 hours.
