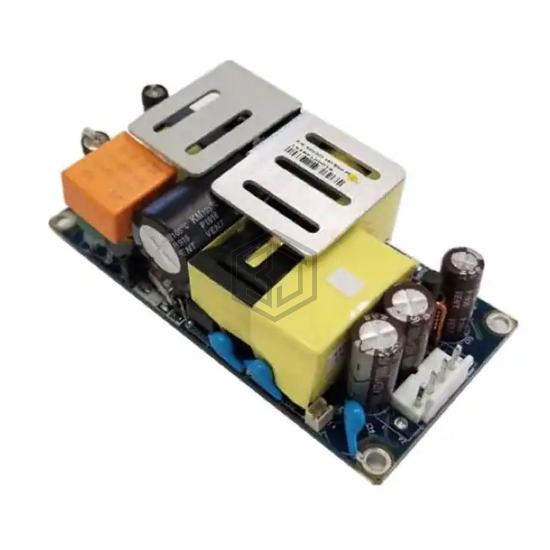

AC/DC CONVERTER 28V 140W
ASM201-280-BNH-PF1 is a AC DC Converters manufactured by Astrodyne TDI. AC/DC CONVERTER 28V 140W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 80 ~ 240 VAC, size / dimension 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm).
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 240 VAC |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 140W (199W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
| Approval Agency | CB, CE, cTUVus, TUV |
| Standard Number | 60601-1; 60950-1; 62368-1 |
Submit your RFQ for ASM201-280-BNH-PF1 and get a quote within 24 hours.
