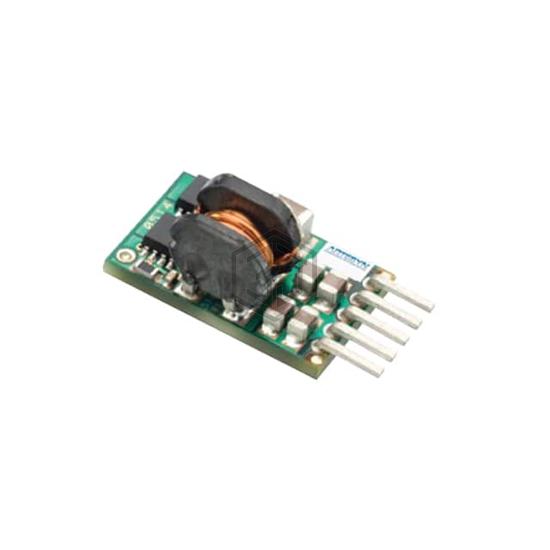

DC DC CONVERTER 0.59-5.1V 50W
LDO10C-005W05-VJ is a DC DC Converters manufactured by Artesyn Embedded Power. DC DC CONVERTER 0.59-5.1V 50W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 5-SIP Module, current - output (max) 10A.
In Stock: 106
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 13.8V |
| Voltage - Output 1 | 0.59 ~ 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 5-SIP Module |
| Size / Dimension | 0.46" L x 0.41" W x 0.65" H (11.7mm x 10.4mm x 16.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for LDO10C-005W05-VJ and get a quote within 24 hours.
