DC DC CONVERTER +/-12V 15W

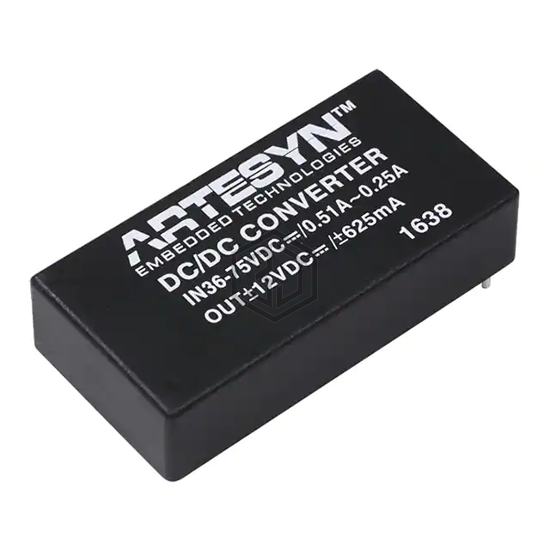

AEE01BB12-M is a DC DC Converters manufactured by Artesyn Embedded Power. DC DC CONVERTER +/-12V 15W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C (With Derating), package / case 5-DIP Module, current - output (max) 625mA, 625mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA, 625mA |
| Power (Watts) | 15 W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial), Medical |
| Features | OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
