AC/DC CONVERTER 48V 40W

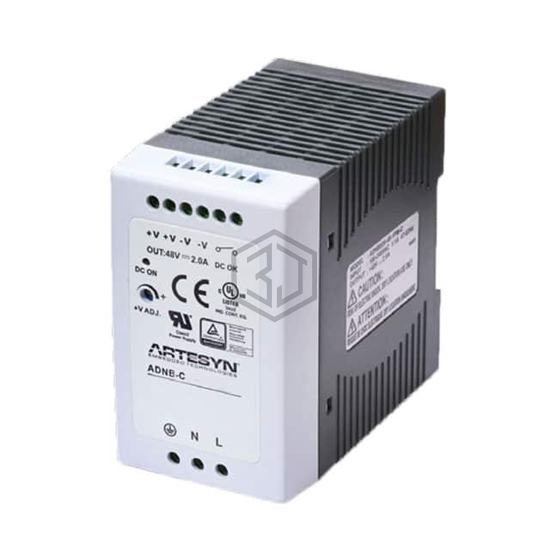

ADNB008-48-1PM-C is a Industrial, DIN Rail Power Supplies manufactured by Artesyn Embedded Power. AC/DC CONVERTER 48V 40W. Key specifications: operating temperature -40°C ~ 85°C (With Derating), current - output (max) 850mA, size / dimension 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm), number of outputs 1.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 850mA |
| Power (Watts) | 40W |
| Voltage - Isolation | 4.242 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) |
| Approval Agency | CE, cULus, UR, TUV |
| Standard Number | - |
