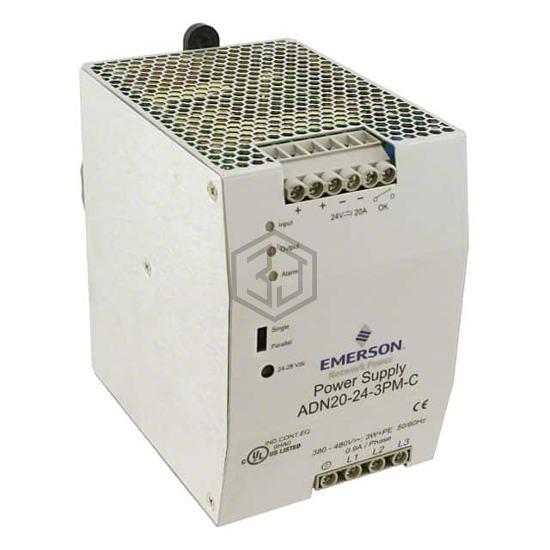

AC/DC CONVERTER 24V 480W
ADN20-24-3PM-C is a Industrial, DIN Rail Power Supplies manufactured by Artesyn Embedded Power. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.68" L x 3.34" W x 4.85" H (119.0mm x 85.0mm x 123.0mm), number of outputs 1.
In Stock: 1,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 320 ~ 540 VAC (3 Phase) |
| DC Voltage - Input (Min) | 450V |
| DC Voltage - Input (Max) | 760V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.68" L x 3.34" W x 4.85" H (119.0mm x 85.0mm x 123.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for ADN20-24-3PM-C and get a quote within 24 hours.
