AC/DC CONVERTER 24V 480W

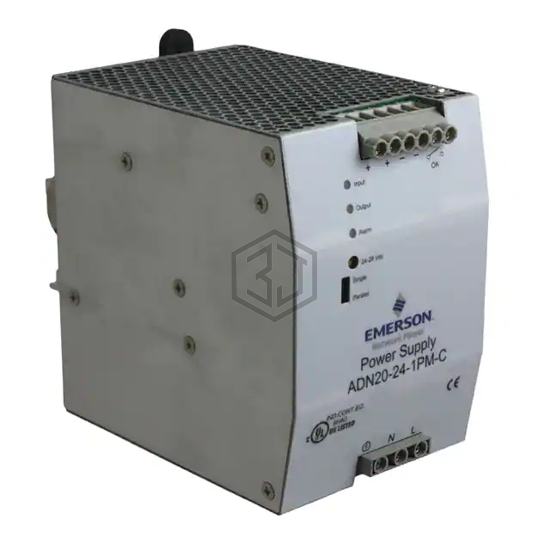

ADN20-24-1PM-C is a Industrial, DIN Rail Power Supplies manufactured by Artesyn Embedded Power. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.96" L x 3.42" W x 4.85" H (126.0mm x 87.0mm x 123.0mm), number of outputs 1.
In Stock: 75
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 90V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.96" L x 3.42" W x 4.85" H (126.0mm x 87.0mm x 123.0mm) |
| Approval Agency | CE, cULus, UL |
| Standard Number | Class I Div 2; 508; 60950-1 |
Submit your RFQ for ADN20-24-1PM-C and get a quote within 24 hours.
