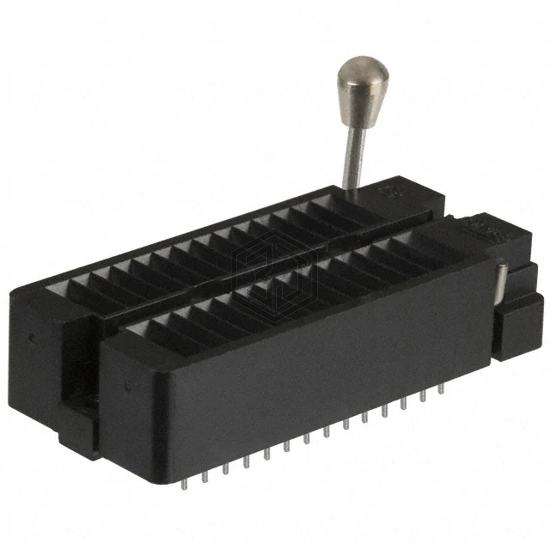

CONN IC DIP SOCKET ZIF 28POS TIN
28-6554-10 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET ZIF 28POS TIN. Key specifications: mounting type Through Hole, housing material Polyphenylene Sulfide (PPS), Glass Filled, termination Solder.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Operating Temperature | - |
Submit your RFQ for 28-6554-10 and get a quote within 24 hours.
