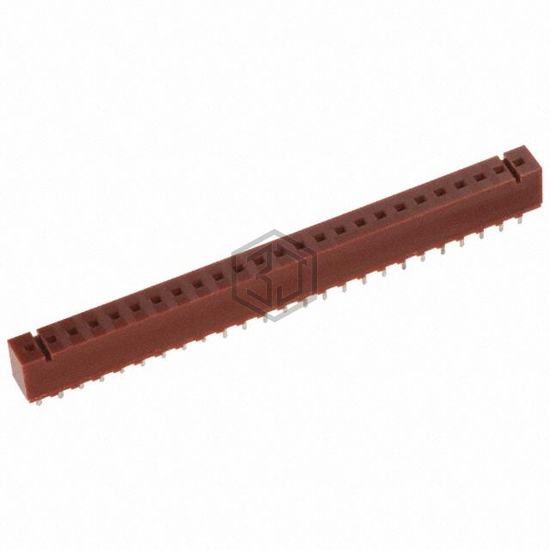

CONN SOCKET SIP 25POS TIN
25-0511-10 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN SOCKET SIP 25POS TIN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, housing material Polyamide (PA46), Nylon 4/6, Glass Filled, termination Solder.
In Stock: 5,934
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SIP |
| Number of Positions or Pins (Grid) | 25 (1 x 25) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | - |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Operating Temperature | -55°C ~ 105°C |
