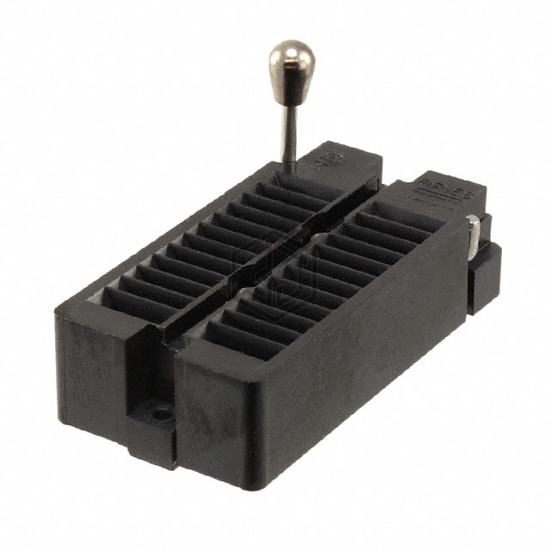

CONN IC DIP SOCKET ZIF 24POS
24-6554-16 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET ZIF 24POS. Key specifications: mounting type Through Hole, housing material Polyphenylene Sulfide (PPS), Glass Filled, termination Solder.
In Stock: 210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 24 (2 x 12) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Nickel Boron |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Nickel Boron |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Operating Temperature | - |
Submit your RFQ for 24-6554-16 and get a quote within 24 hours.
