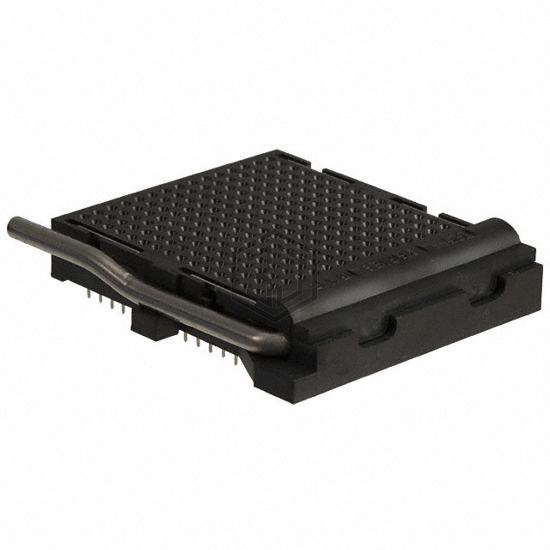

CONN SOCKET PGA ZIF GOLD
225-PRS15001-12 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN SOCKET PGA ZIF GOLD. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, housing material Polyphenylene Sulfide (PPS), termination Solder.
In Stock: 162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | PGA, ZIF (ZIP) |
| Number of Positions or Pins (Grid) | 225 (15 x 15) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -65°C ~ 125°C |
Submit your RFQ for 225-PRS15001-12 and get a quote within 24 hours.
