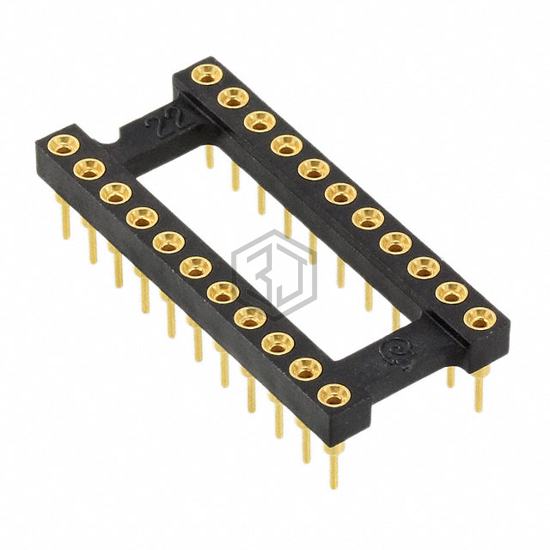

CONN IC DIP SOCKET 22POS GOLD
22-4518-11 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET 22POS GOLD. Key specifications: mounting type Through Hole, housing material Polyamide (PA46), Nylon 4/6, Glass Filled, termination Solder.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.4" (10.16mm) Row Spacing |
| Number of Positions or Pins (Grid) | 22 (2 x 11) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Material - Post | Brass |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Operating Temperature | - |
Submit your RFQ for 22-4518-11 and get a quote within 24 hours.
