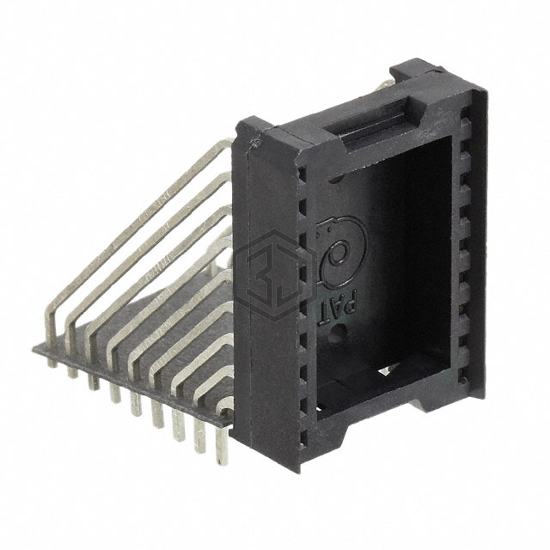

CONN IC DIP SOCKET 18POS TIN
18-6810-90T is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET 18POS TIN. Key specifications: mounting type Through Hole, Right Angle, Vertical, housing material Polyamide (PA46), Nylon 4/6, termination Solder.
In Stock: 104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 18 (2 x 9) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Operating Temperature | - |
Submit your RFQ for 18-6810-90T and get a quote within 24 hours.
