CONN IC DIP SOCKET 16POS GOLD

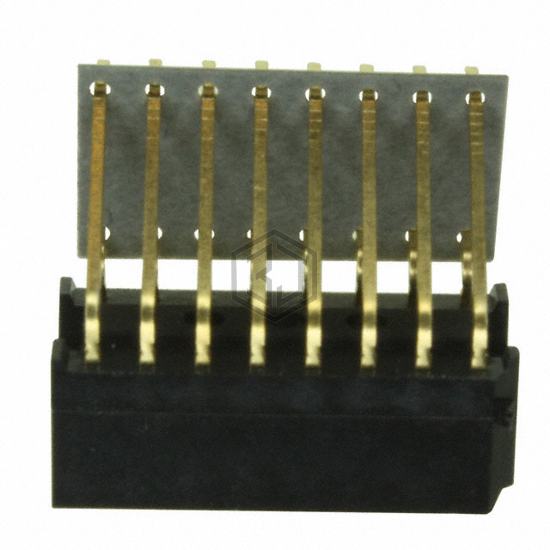

16-823-90 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET 16POS GOLD. Key specifications: mounting type Through Hole, Right Angle, Horizontal, housing material Polyamide (PA46), Nylon 4/6, termination Solder.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole, Right Angle, Horizontal |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Operating Temperature | - |
Submit your RFQ for 16-823-90 and get a quote within 24 hours.
