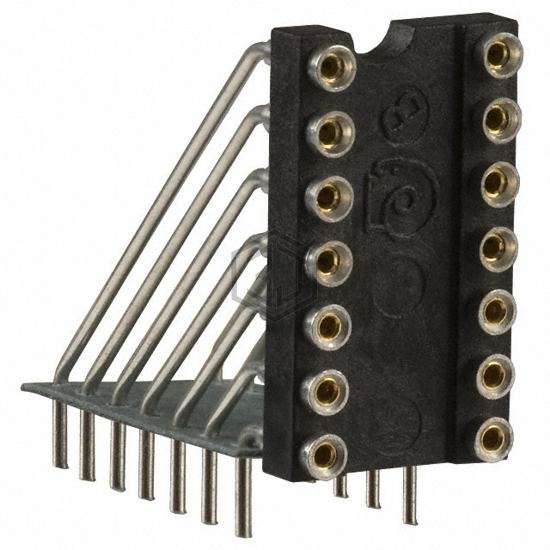

CONN IC DIP SOCKET 14POS GOLD
14-810-90C is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET 14POS GOLD. Key specifications: mounting type Through Hole, Right Angle, Vertical, housing material Polyamide (PA46), Nylon 4/6, Glass Filled, termination Solder.
In Stock: 130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Brass |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Operating Temperature | - |
