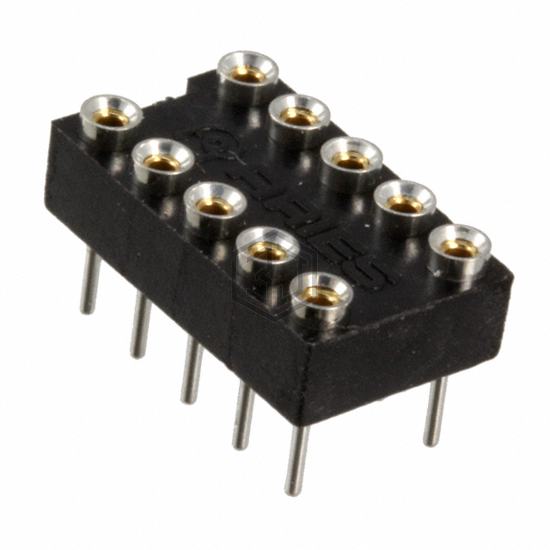

CONN IC DIP SOCKET 10POS GOLD
10-6513-11 is a Sockets for ICs, Transistors manufactured by Aries Electronics. CONN IC DIP SOCKET 10POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, housing material Polyamide (PA46), Nylon 4/6, Glass Filled, termination Solder.
In Stock: 4,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 10 (2 x 5) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Material - Post | Brass |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Operating Temperature | -55°C ~ 105°C |
Submit your RFQ for 10-6513-11 and get a quote within 24 hours.
