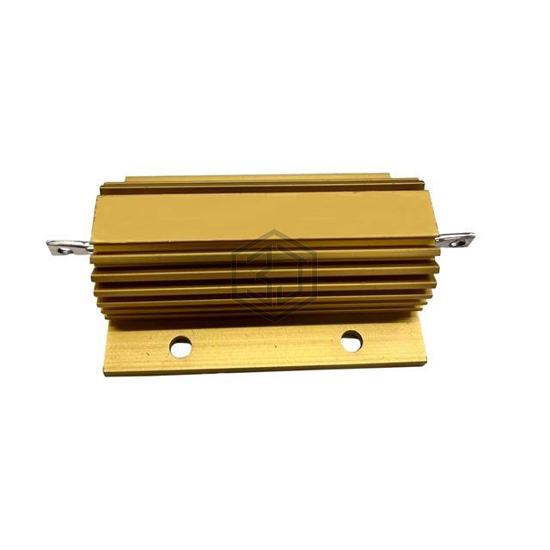

ALUM HOUSE 75W 560 OHMS 1%
HS75 560R F is a Chassis Mount Resistors manufactured by ARCOL. ALUM HOUSE 75W 560 OHMS 1%. Key specifications: mounting feature Flanges, package / case Axial, Box, size / dimension 1.917" L x 1.870" W (48.70mm x 47.50mm), power (watts) 75W.
In Stock: 1,155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 75W |
| Composition | Wirewound |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | - |
| Features | Pulse Withstanding |
| Coating, Housing Type | Aluminum |
| Mounting Feature | Flanges |
| Size / Dimension | 1.917" L x 1.870" W (48.70mm x 47.50mm) |
| Height - Seated (Max) | 0.949" (24.10mm) |
| Lead Style | Solder Lugs |
| Package / Case | Axial, Box |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CJH4000J560RJ | TE Connectivity Passive Product | CJH 4000W 560R 5% LEAD | 100% | View |
| CJP80J560RJ | TE Connectivity Passive Product | CJP 80W 560R 5% LEAD | 96% | View |
| TE60B560RJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 60W | 86% | View |
| 50WM156 | NTE Electronics, Inc | RES CHAS MNT 560 OHM 1% 50W | 74% | View |
| HSA50560RF | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 1% 50W | 74% | View |
| TE300B560RJ | TE Connectivity Passive Product | RES CHAS MNT 560 OHM 5% 300W | 56% | View |
Submit your RFQ for HS75 560R F and get a quote within 24 hours.
