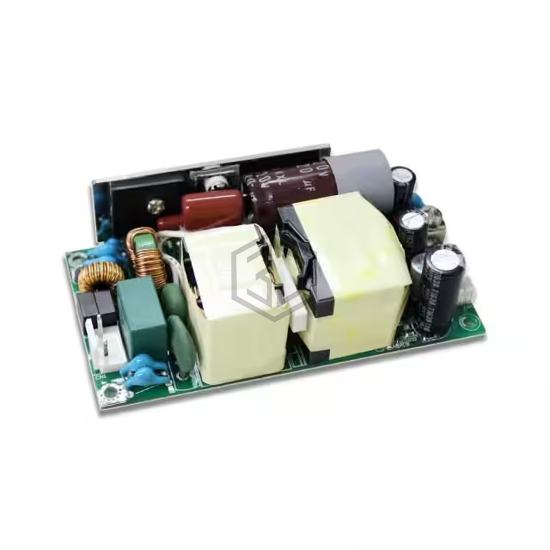

AC/DC CONVERTER 48V 160W
ARF240O-48S is a AC DC Converters manufactured by ARCH. AC/DC CONVERTER 48V 160W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 80°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.02" L x 2.05" W x 1.09" H (102.1mm x 52.1mm x 27.7mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 160W (240W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -30°C ~ 80°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.02" L x 2.05" W x 1.09" H (102.1mm x 52.1mm x 27.7mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for ARF240O-48S and get a quote within 24 hours.
