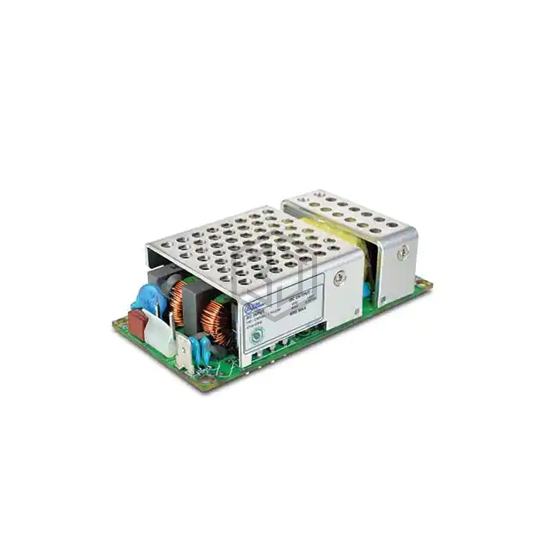

AC/DC CONVERTER 24V 30W
ARFS-3001-24 is a AC DC Converters manufactured by Aras Power Technologies. AC/DC CONVERTER 24V 30W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 1.04" H (101.6mm x 50.8mm x 26.5mm).
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 30W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 1.5 kV |
| Efficiency | 87% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.04" H (101.6mm x 50.8mm x 26.5mm) |
| Approval Agency | CB, cTUVus |
| Standard Number | 60950-1 |
Submit your RFQ for ARFS-3001-24 and get a quote within 24 hours.
