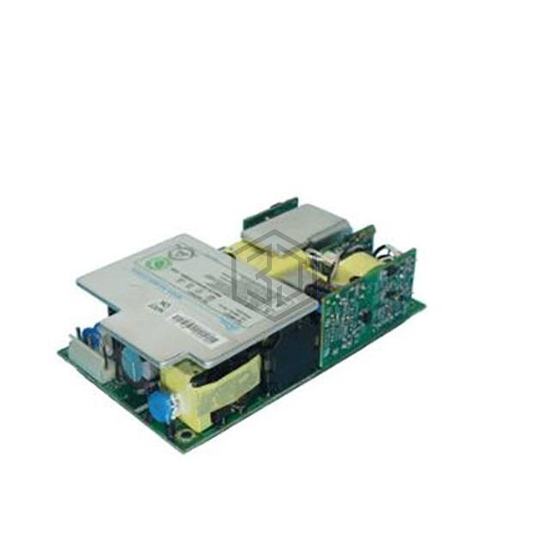

AC/DC CONVERTER 12V 5V -12V 116W
ARFS-1113M-00 is a AC DC Converters manufactured by Aras Power Technologies. AC/DC CONVERTER 12V 5V -12V 116W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 500 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 116W |
| Applications | Medical |
| Voltage - Isolation | 1.5 kV |
| Efficiency | 87% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
| Approval Agency | CB, cTUVus, UL |
| Standard Number | 60601-1 |
Submit your RFQ for ARFS-1113M-00 and get a quote within 24 hours.
