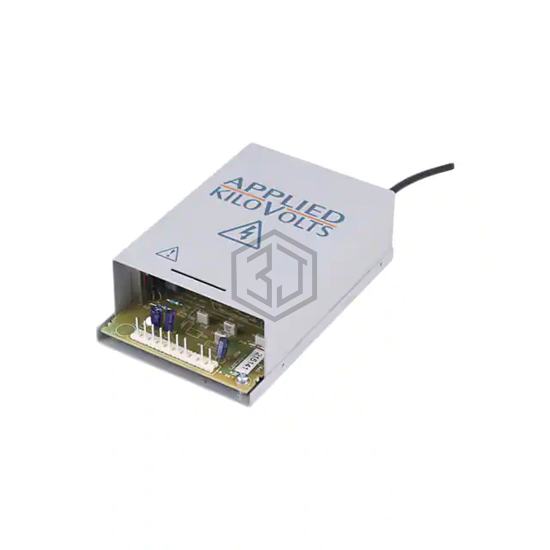

DC/DC CONVERTER 10V-2500V 10W
HP2.5NAA025 is a DC DC Converters manufactured by Applied Kilovolts Ltd.. DC/DC CONVERTER 10V-2500V 10W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C, current - output (max) 4mA, size / dimension 5.79" L x 3.86" W x 1.85" H (147.0mm x 98.0mm x 47.0mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, High Voltage |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 10V ~ 2500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4mA |
| Power (Watts) | 10W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | 0°C ~ 50°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.79" L x 3.86" W x 1.85" H (147.0mm x 98.0mm x 47.0mm) |
| Approval Agency | cURus, UL |
| Standard Number | - |
Submit your RFQ for HP2.5NAA025 and get a quote within 24 hours.
