DC/DC CONVERTER 20V-10000V 10W

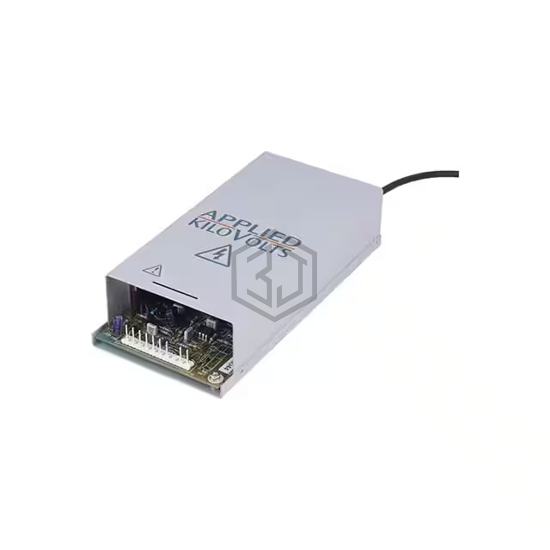

HP010PIP025 is a DC DC Converters manufactured by Applied Kilovolts Ltd.. DC/DC CONVERTER 20V-10000V 10W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C, current - output (max) 1mA, size / dimension 7.87" L x 3.86" W x 1.85" H (200.0mm x 98.0mm x 47.0mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, High Voltage |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 20V ~ 10000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1mA |
| Power (Watts) | 10W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | 0°C ~ 50°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.87" L x 3.86" W x 1.85" H (200.0mm x 98.0mm x 47.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for HP010PIP025 and get a quote within 24 hours.
