FIXED IND 220UH 600MA 1.17OHM SM

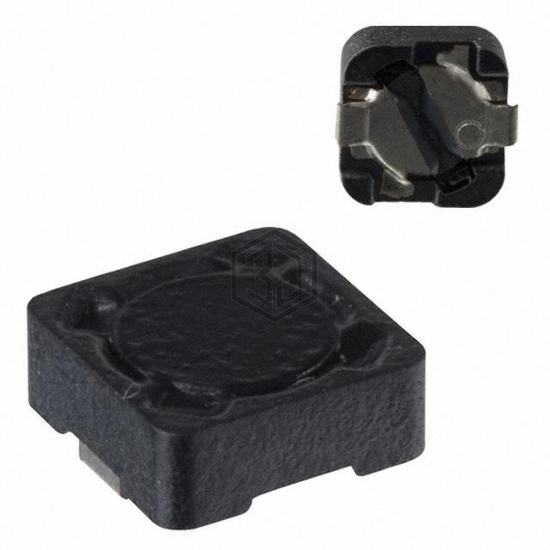

SPD74R-224M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 220UH 600MA 1.17OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 600 mA.
In Stock: 5,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.17Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
