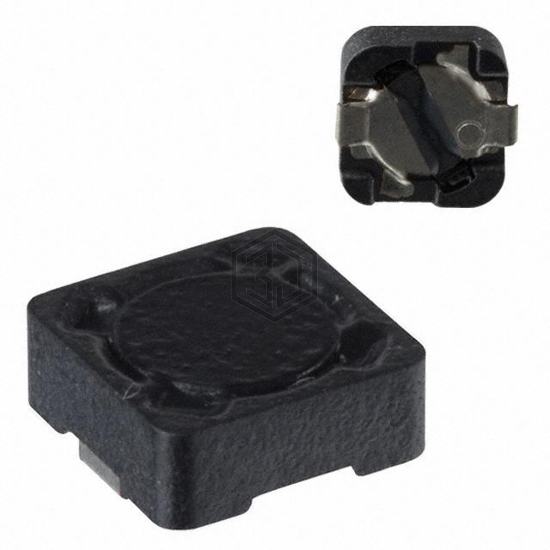

FIXED IND 10UH 3.2A 49 MOHM SMD
SPD74R-103M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 10UH 3.2A 49 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.2 A.
In Stock: 7,563
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | 3.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 49mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for SPD74R-103M and get a quote within 24 hours.
