FIXED IND 100UH 850MA 790MOHM SM

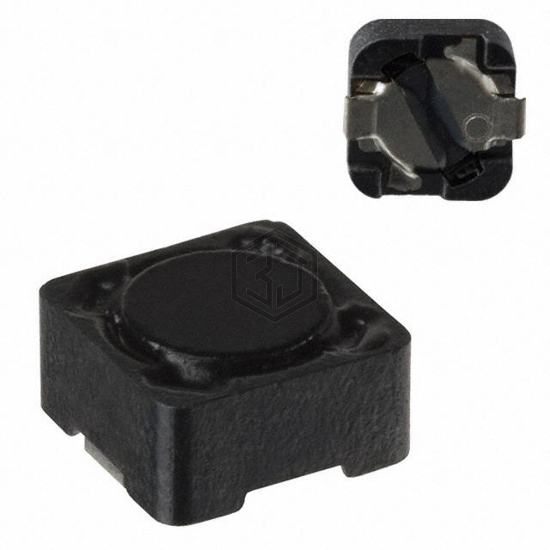

SPD73R-104M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 100UH 850MA 790MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 850 mA.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | 850mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 790mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
Submit your RFQ for SPD73R-104M and get a quote within 24 hours.
