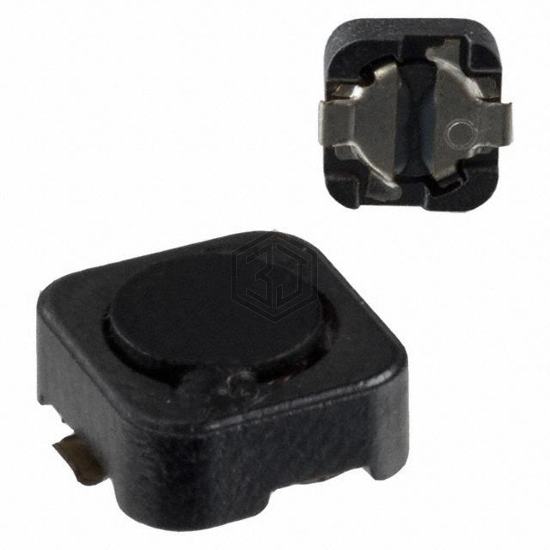

FIXED IND 1.2UH 3.5A 80 MOHM SMD
SPD62R-122M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1.2UH 3.5A 80 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.244" W (6.60mm x 6.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SPD62R-122M and get a quote within 24 hours.
