FIXED IND 4.7UH 900MA 45MOHM SMD

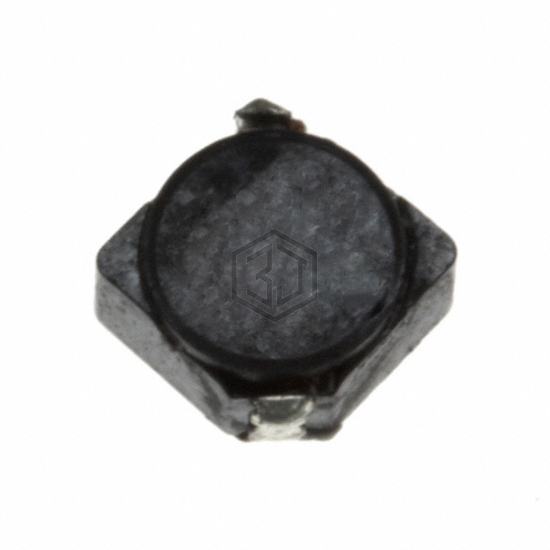

SPD42R-472M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 4.7UH 900MA 45MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 45mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
Submit your RFQ for SPD42R-472M and get a quote within 24 hours.
