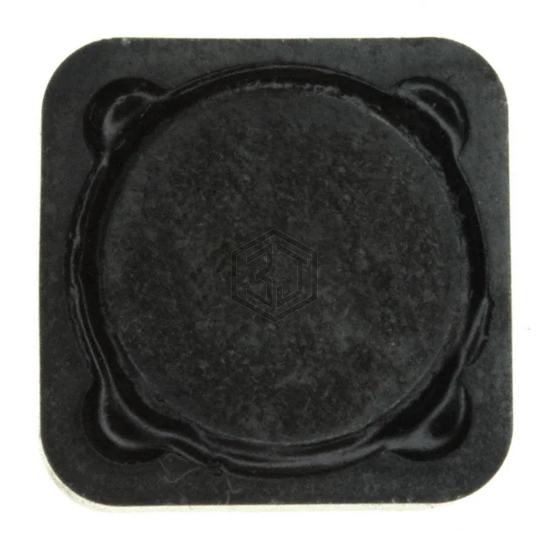

FIXED IND 1MH 620MA 1.54 OHM SMD
SPD127R-105M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1MH 620MA 1.54 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 620 mA.
In Stock: 1,889
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 620 mA |
| Current - Saturation (Isat) | 620mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.54Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for SPD127R-105M and get a quote within 24 hours.
