FIXED IND 1.2MH 120MA 22.1OHM SM

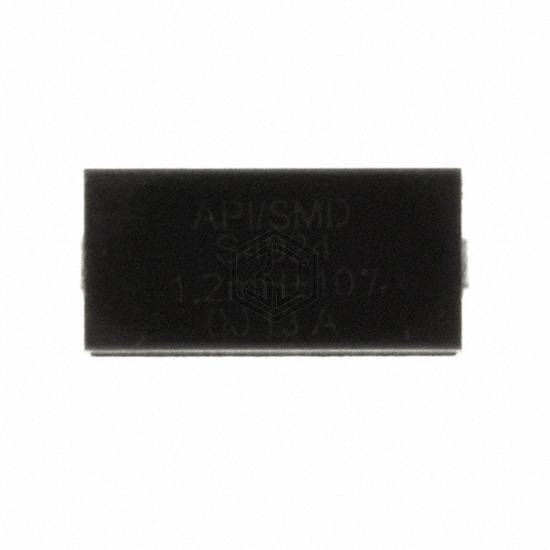

S4924-125K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1.2MH 120MA 22.1OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 120 mA.
In Stock: 2,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1.2 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 120 mA |
| Current - Saturation (Isat) | 28mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 22.1Ohm Max |
| Q @ Freq | 50 @ 250kHz |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.505" L x 0.240" W (12.82mm x 6.09mm) |
| Height - Seated (Max) | 0.220" (5.58mm) |
Submit your RFQ for S4924-125K and get a quote within 24 hours.
