FIXED IND 1.2UH 625MA 290MOHM SM

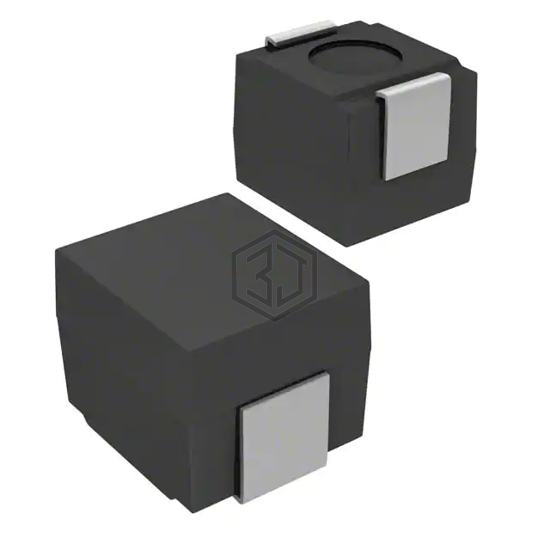

S1008R-122K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1.2UH 625MA 290MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 625 mA.
In Stock: 5,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 625 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | 30 @ 7.9MHz |
| Frequency - Self Resonant | 95MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.105" W (2.92mm x 2.66mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
Submit your RFQ for S1008R-122K and get a quote within 24 hours.
