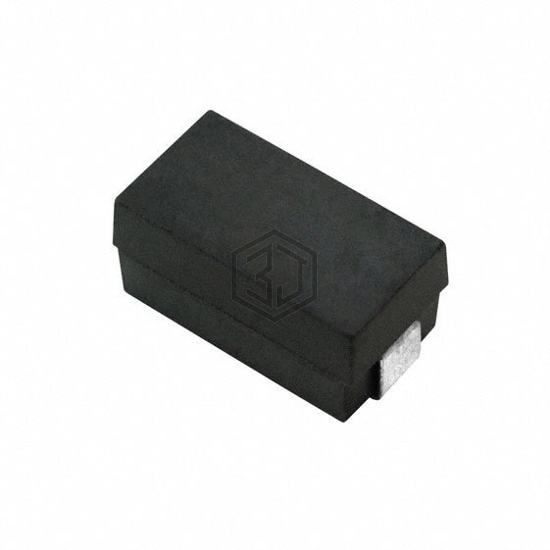

FIXED IND 82UH 387MA 1.96OHM SMD
P3519R-823J is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 82UH 387MA 1.96OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 387 mA.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 387 mA |
| Current - Saturation (Isat) | 480mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.96Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.358" L x 0.190" W (9.09mm x 4.83mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
