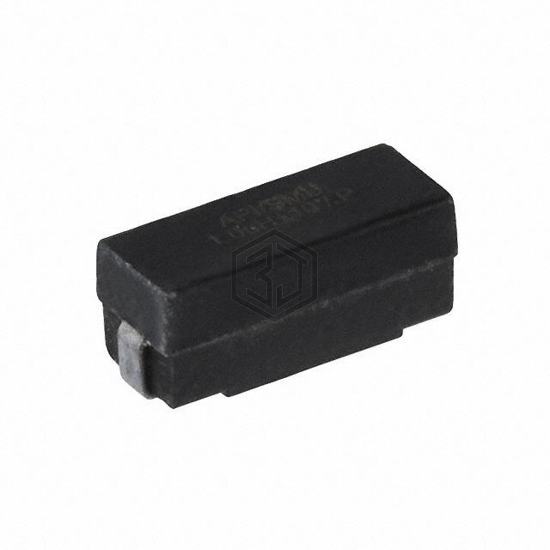

FIXED IND 4.7UH 1.33A 125MOHM SM
P1330R-472K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 4.7UH 1.33A 125MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.33 A.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.33 A |
| Current - Saturation (Isat) | 720mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 125mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.313" L x 0.115" W (7.94mm x 2.92mm) |
| Height - Seated (Max) | 0.145" (3.68mm) |
Submit your RFQ for P1330R-472K and get a quote within 24 hours.
