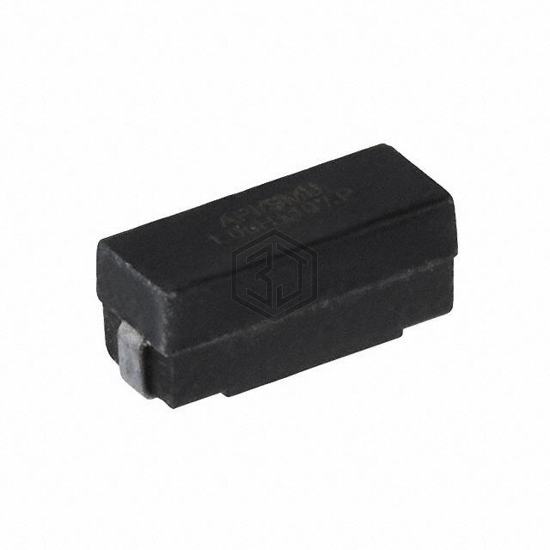

FIXED IND 680UH 130MA 8.76OHM SM
P1330-684H is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 680UH 130MA 8.76OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 130 mA.
In Stock: 6,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 680 µH |
| Tolerance | ±3% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | 30mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.76Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.325" L x 0.125" W (8.26mm x 3.18mm) |
| Height - Seated (Max) | 0.145" (3.68mm) |
Submit your RFQ for P1330-684H and get a quote within 24 hours.
