FIXED IND 10MH 120MA 23.4OHM SMD

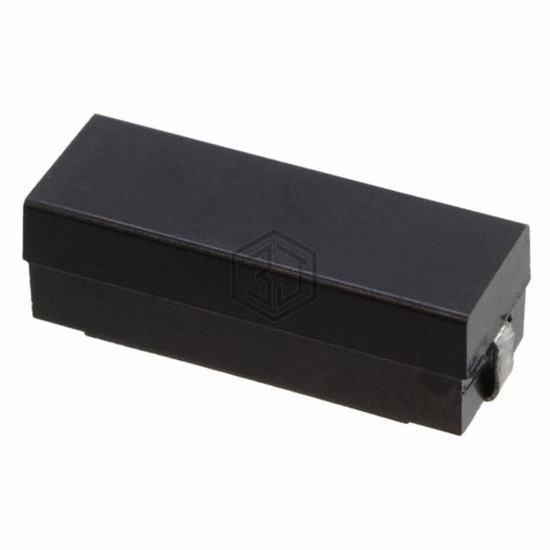

M27/370-49 is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 10MH 120MA 23.4OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 120 mA.
In Stock: 886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 120 mA |
| Current - Saturation (Isat) | 60mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 23.4Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.880" L x 0.330" W (22.35mm x 8.38mm) |
| Height - Seated (Max) | 0.286" (7.26mm) |
