FIXED IND 390UH 680MA 770MOHM SM

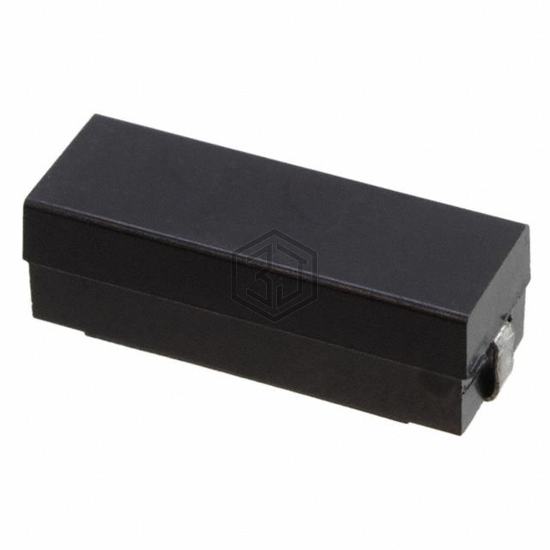

M27/370-32 is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 390UH 680MA 770MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 680 mA.
In Stock: 914
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 390 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 680 mA |
| Current - Saturation (Isat) | 320mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 770mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.880" L x 0.330" W (22.35mm x 8.38mm) |
| Height - Seated (Max) | 0.286" (7.26mm) |
Submit your RFQ for M27/370-32 and get a quote within 24 hours.
