FIXED IND 1UH 6.27A 9 MOHM SMD

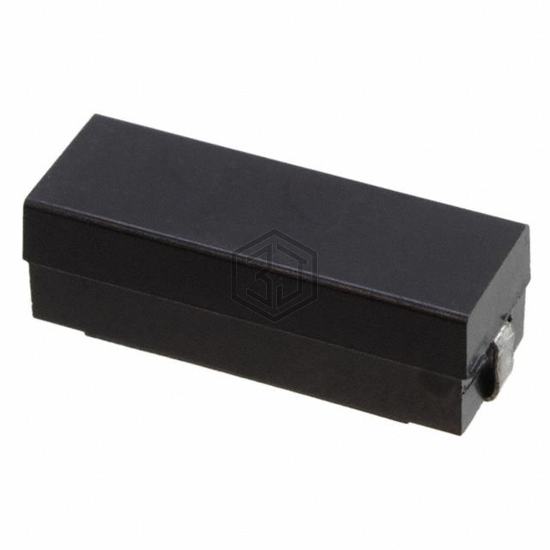

M27/370-01 is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1UH 6.27A 9 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 6.27 A.
In Stock: 931
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 6.27 A |
| Current - Saturation (Isat) | 6.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.880" L x 0.330" W (22.35mm x 8.38mm) |
| Height - Seated (Max) | 0.286" (7.26mm) |
Submit your RFQ for M27/370-01 and get a quote within 24 hours.
