FIXED IND 1.8UH 4.34A 21MOHM SMD

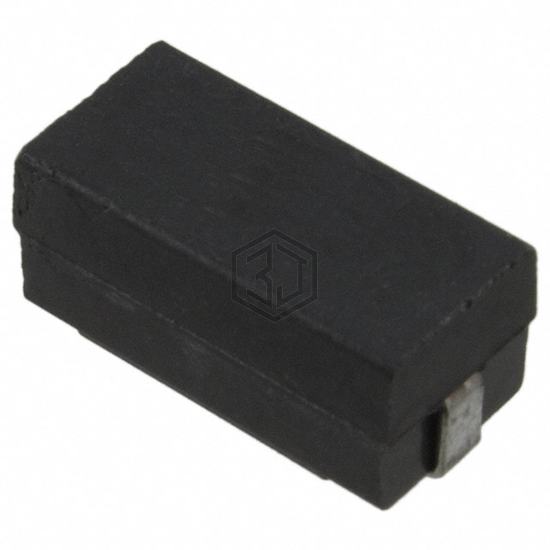

M27/367-12 is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1.8UH 4.34A 21MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 4.34 A.
In Stock: 740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1.8 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 4.34 A |
| Current - Saturation (Isat) | 4.34A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 21mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Height - Seated (Max) | 0.230" (5.84mm) |
Submit your RFQ for M27/367-12 and get a quote within 24 hours.
